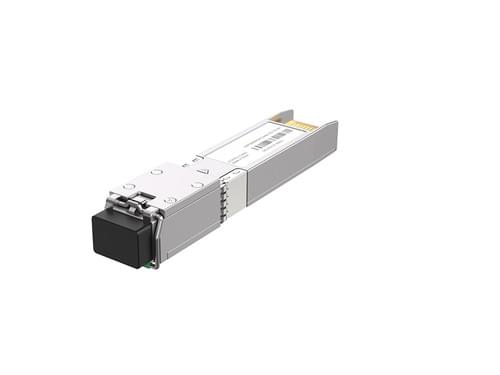

The XGS-PON N2 OLT from SH LINK  is an optical module offering a universal upgrade path from existing GPON networks to next generation high speed XGS-PON networks promising business and residential multi-gigabit servieces. The transceiver module meets the N2 class mavimum opticla link budget in the XGS-PON standard G.9807.1,  providing 10Gbps downstream and 10Gbps upstream data rate and  supports a 1:64 split ratio on 20km links. The high-bandwidth symmetric services enabled by GPON  to XGS-PON network migration promises to accelerate adoption of data intensive applications such as live gaming. virtual reality, and e-sports. It provides greater than 4dBm transmit optical power, meeting the N2 maximum opticla link budget of 31dB, providing operators a single platform to support the upgrade of both B+ and C+ GPON networks to XGS-PON. The XGS-PON N2 OLT module is available in SFP+ package with SC/UPC receptable optical interface

• Single fiber bi-directional data links TX 9.953Gbps, Burst Mode Rx 9.953Gbps/2.488Gbps application
• 0-70℃ operating case temperature 3.3V power supply
• SFP+ package with SC Receptacle connector
• Plug and Play
• High power 1577mm EML LD and high sensitivity 1270nm APD
• Support 20km transmission distance with SMF
• LOS indication
• Low EMI and excellent ESD protection
• Digital diagnostic monitor interface
• RoHS6 compliance
